Overview

Deployed an interactive ABB GoFa CRB 15000 installation that generated expressive robot motion from audio using a VAE-based motion pipeline and ROS 2 control stack. The system combined music-to-motion generation, ABB RobotStudio safety configuration, and MediaPipe-based hand-tracking experiments, and was exhibited at the Swiss Design Awards 2025.

  • Exhibited: Swiss Design Awards 2025
  • Team: Advaith Sriram, Emilie Grandjean, William Galand & Léa Pereyre
  • Lab: REHAssist, EPFL
  • Robot: ABB CRB 15000 (GoFa)
  • Tech Stack: ROS 2, Python, MediaPipe, VAE, ABB RobotStudio

Project Video

Robot performing music-driven choreography

AI Model: Audio to Motion

We trained a Variational Autoencoder (VAE) to convert audio features (MFCCs) into 6-DoF joint trajectories.

  • Audio split into 3s chunks → MFCC features extracted
  • Latent vector encoded → decoded into joint positions
  • Cubic spline interpolation for smooth motion
  • Safety-aware joint scaling

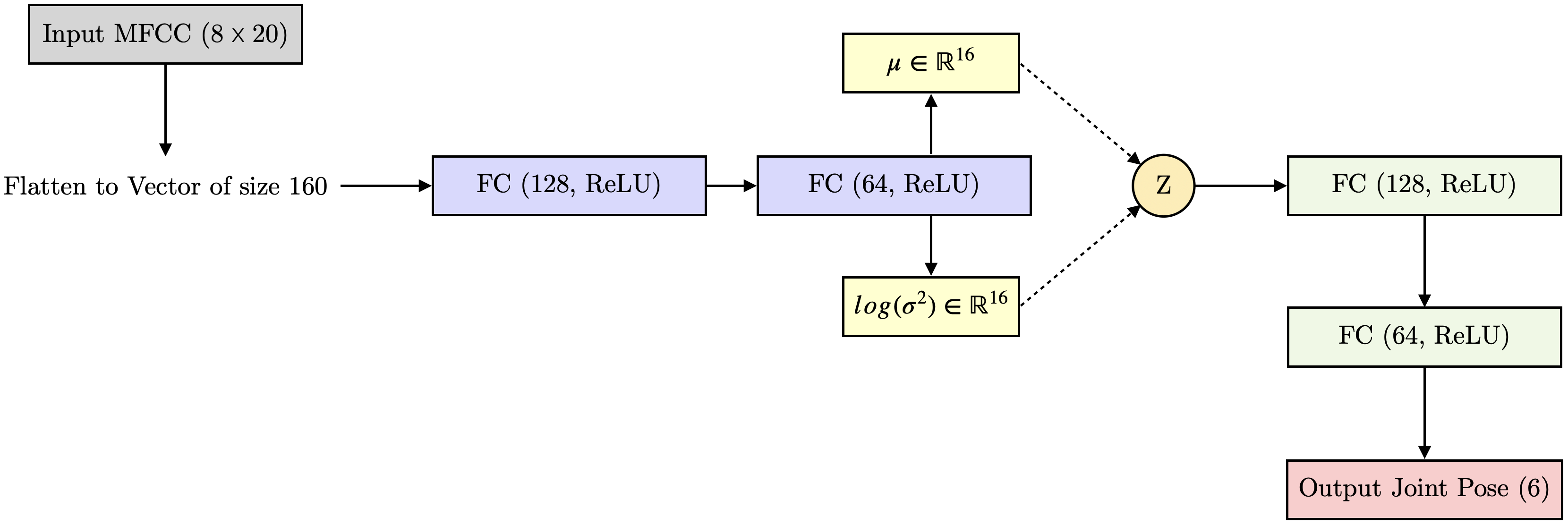

VAE Architecture: MFCC → Latent Space → Joint Angles

Robot Integration

  • Robot control via ROS 2 Humble
  • Real-time joint trajectory execution through ABB’s Externally Guided Motion (EGM) interface
  • Custom safety zones defined in RobotStudio for exhibition use
  • All code modularized into 3 custom packages:
    • music_motion
    • hand_tracking
    • moveit_cpp_interface

Hand Tracking & Interaction Design

  • Hand tracking with MediaPipe
  • Real-time gesture recognition (Palm Up, Down, Open)
  • Robot orients and tracks based on wrist and palm orientation
  • Camera mounted on robot end-effector
  • Due to signal issues, interactive mode was not deployed, but tested independently

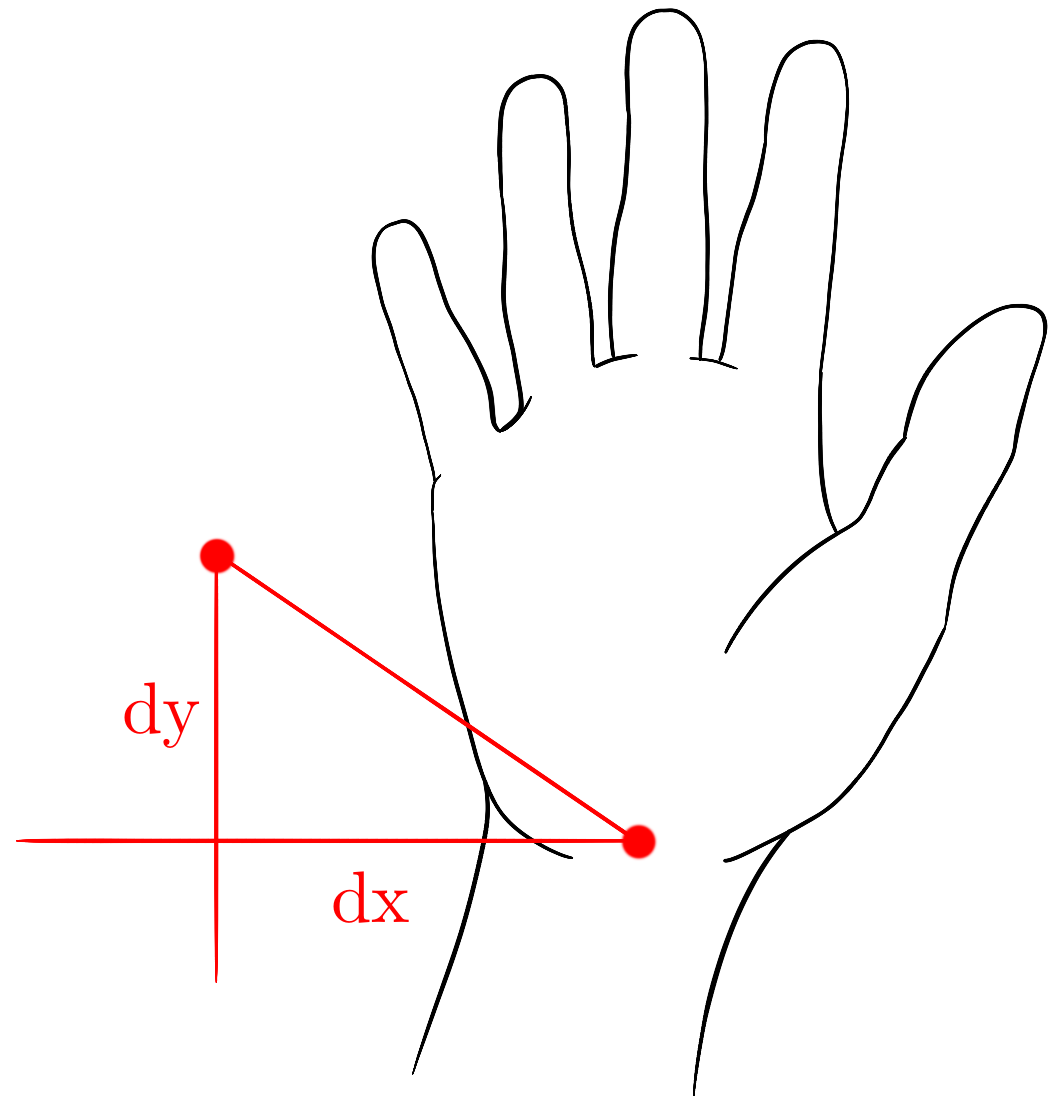

Hand Tracking based on Horizontal and Vertical Displacement Angles

Interactive Hand Tracking Trial (Video)

Hand-tracking demo using MediaPipe

Exhibition at Swiss Design Awards 2025

  • Full system installed and exhibited in Basel from May 29th to June 17th, 2025
  • Packaged with a single-click launch script for non-technical staff
  • 40+ page user manual created
  • Costume aesthetics integrated with motion design

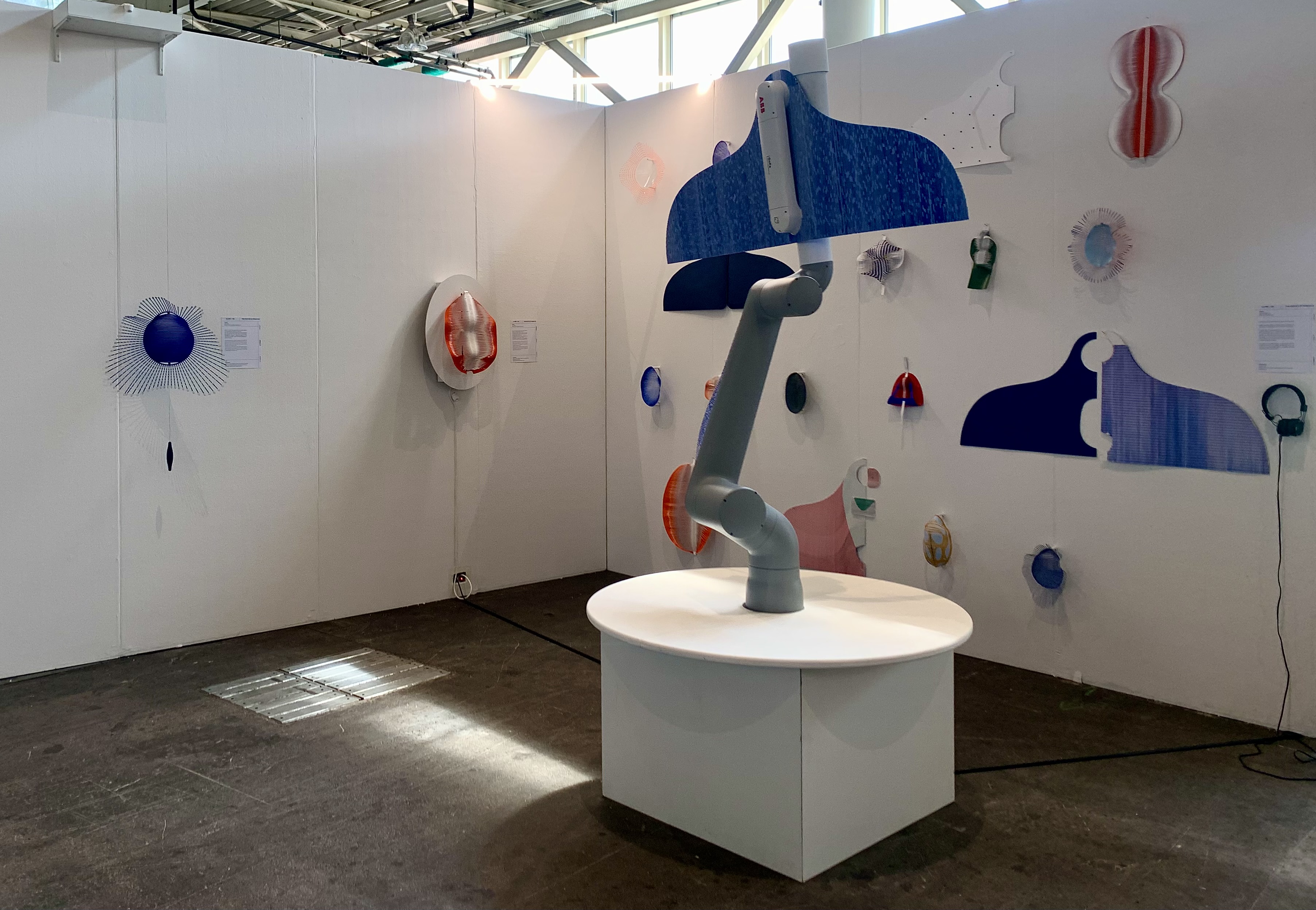

Final exhibition setup in Basel

Tools and Libraries

  • Python for audio processing, VAE model training, and MediaPipe-based hand tracking
  • C++ for ROS 2-based trajectory publishing and interfacing with MoveIt
  • ROS 2 Humble for robot control, messaging, and system integration
  • ABB RobotStudio Suite for defining safety zones and simulating robot motion
  • PyTorch for building and training the Variational Autoencoder (VAE)
  • Librosa for extracting MFCC audio features
  • RViz, MoveIt 2 and Gazebo for robot visualization, trajectory planning and simulation
  • MediaPipe for real-time hand tracking and gesture recognition
